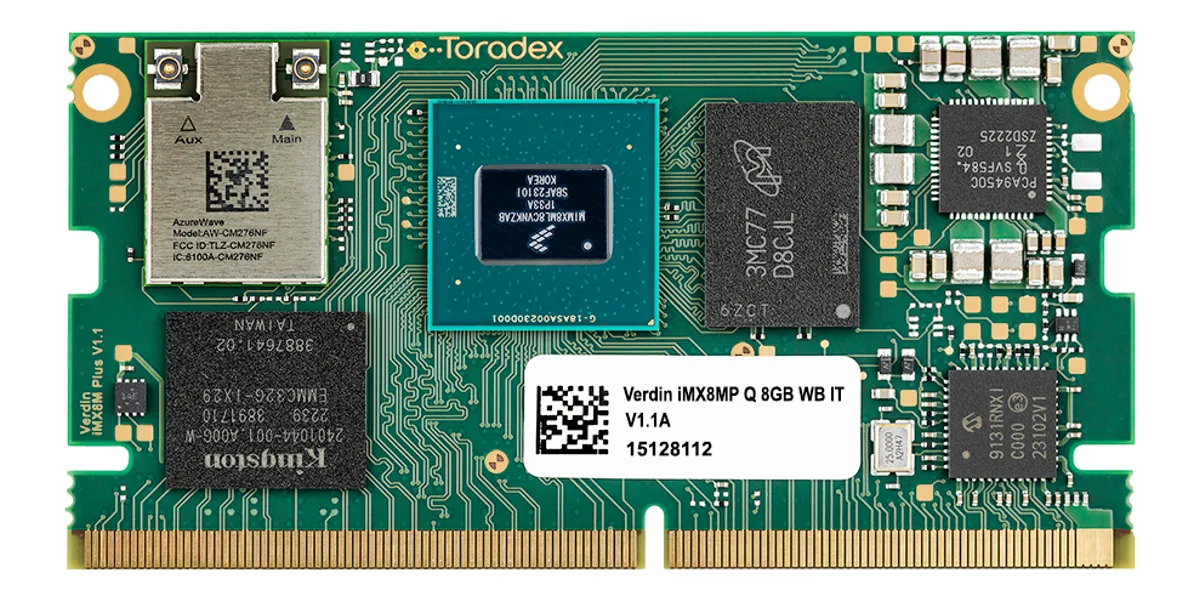

Toradex Verdin iMX8M Plus
NXP i.MX 8M Plus system on module with a 2.3 TOPS NPU, TSN Ethernet and dual CAN FD, on a Toradex carrier board. A Linux-ready kit for industrial and medical products.
Specifications
- SoC
- NXP i.MX 8M Plus
- CPU
- Up to 4× Arm Cortex-A53 @ 1.8 GHz, Cortex-M7F @ 800 MHz
- AI accelerator
- NPU, up to 2.3 TOPS
- Memory
- Up to 8 GB LPDDR4
- Storage
- Up to 32 GB eMMC
- Display
- MIPI DSI up to 1920 × 1080, LVDS
- Camera
- On-chip image signal processor
- Networking
- 2× Gigabit Ethernet (1× PHY with TSN, 1× RGMII)
- Wireless
- Optional 2×2 Wi-Fi 5 (802.11ac), Bluetooth 5.3
- Industrial I/O
- 2× CAN FD
- Carrier boards
- Dahlia, Mallow or Verdin Development Board
- Linux support
- Torizon OS, Toradex Yocto Project BSP
- Manufacturer
- Toradex AG, Switzerland
- Fast Solutions kit
- Linux image built for your application (Yocto or Debian-based), BSP and driver bring-up on request
Details
A production-grade system on module from Toradex, built on the NXP i.MX 8M Plus with an NPU, image signal processor and Cortex-M7 real-time core. Toradex maintains the Yocto BSP and Torizon OS, so the module that runs the prototype is the one that ships in the product.
- 4× Cortex-A53 @ 1.8 GHz, Cortex-M7F @ 800 MHz
- NPU up to 2.3 TOPS, on-chip ISP
- Up to 8 GB LPDDR4, up to 32 GB eMMC
- 2× Gigabit Ethernet (one with TSN), 2× CAN FD
Supplied as a Linux-ready kit: we deliver the board with a Linux image built for your application and can take on BSP customisation, driver development and bring-up. Contact us for scope and lead time.
Tag: FEL-VERDIN-8MP, r1, hardware, 25 Sept 2026
