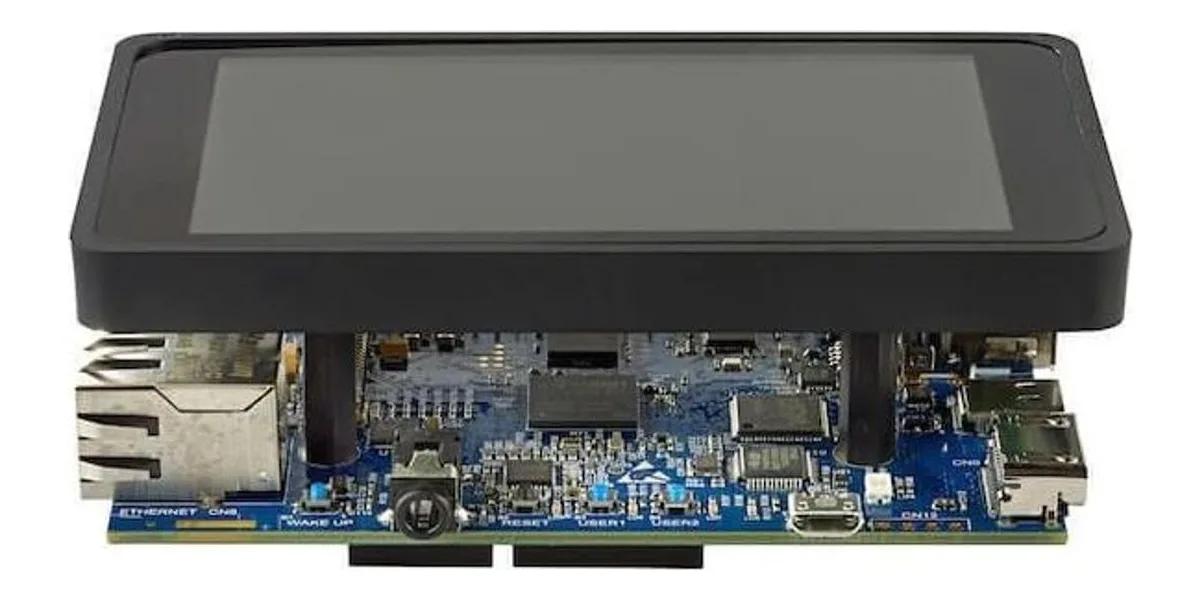

STM32MP157F-DK2 Discovery Kit
STMicroelectronics STM32MP157F dual Cortex-A7 with a Cortex-M4 real-time core, 4-inch touch display, Wi-Fi and Bluetooth LE. A Linux-ready kit for compact HMI and industrial controllers.
Specifications
- MPU
- STM32MP157F
- CPU
- 2× Arm Cortex-A7 @ 800 MHz, Cortex-M4 @ 209 MHz
- Memory
- 512 MB DDR3L
- Storage
- microSD
- Display
- 4" 480 × 800 MIPI DSI touch panel, HDMI
- Networking
- Gigabit Ethernet
- Wireless
- Wi-Fi, Bluetooth Low Energy
- USB
- 1× USB-C OTG, 4× USB-A host
- Expansion
- Arduino Uno and Raspberry Pi 40-pin connectors
- Debug
- On-board ST-LINK
- Linux support
- OpenSTLinux (Yocto-based), STM32CubeMP1 for the Cortex-M4
- Manufacturer
- STMicroelectronics, Switzerland
- Fast Solutions kit
- Linux image built for your application (Yocto or Debian-based), BSP and driver bring-up on request
Details
ST's discovery kit for the STM32MP157F: Linux on two Cortex-A7 cores beside a Cortex-M4 for real-time control, with a MIPI DSI touch display mounted on the board. A direct starting point for small HMI panels.
- STM32MP157F: 2× Cortex-A7 @ 800 MHz, Cortex-M4
- 4" MIPI DSI touch display
- Gigabit Ethernet, Wi-Fi, Bluetooth LE
- Arduino and Raspberry Pi expansion connectors
Supplied as a Linux-ready kit: we deliver the board with a Linux image built for your application and can take on BSP customisation, driver development and bring-up. Contact us for scope and lead time.
Tag: FEL-MP157F-DK2, r1, hardware, 25 Sept 2026
