Renesas RZ/G2L Evaluation Board Kit
Renesas RZ/G2L dual Cortex-A55 with a Cortex-M33 on a SMARC v2.1 module and carrier board, backed by the Verified Linux Package and its long-term CIP kernel.
Specifications
- MPU
- Renesas RZ/G2L
- CPU
- 2× Arm Cortex-A55 @ 1.2 GHz, Cortex-M33 @ 200 MHz
- GPU
- Arm Mali-G31
- Memory
- 2 GB DDR4
- Storage
- 64 GB eMMC, 512 Mb QSPI flash, microSD
- Form factor
- SMARC v2.1 module on common carrier board
- Display
- Micro-HDMI via DSI-to-HDMI bridge
- Camera
- MIPI CSI (FFC/FPC connector)
- Networking
- 2× Gigabit Ethernet (RJ45)
- USB
- USB 2.0 OTG (Micro-AB), USB 2.0 host (Type-A)
- Audio
- Audio codec
- Power
- USB-C Power Delivery, 65 W charger included
- Linux support
- RZ/G Verified Linux Package (Yocto, CIP kernel)
- Vendor part number
- RTK9744L23S01000BE
- Manufacturer
- Renesas Electronics, Japan
- Fast Solutions kit
- Linux image built for your application (Yocto or Debian-based), BSP and driver bring-up on request
Details

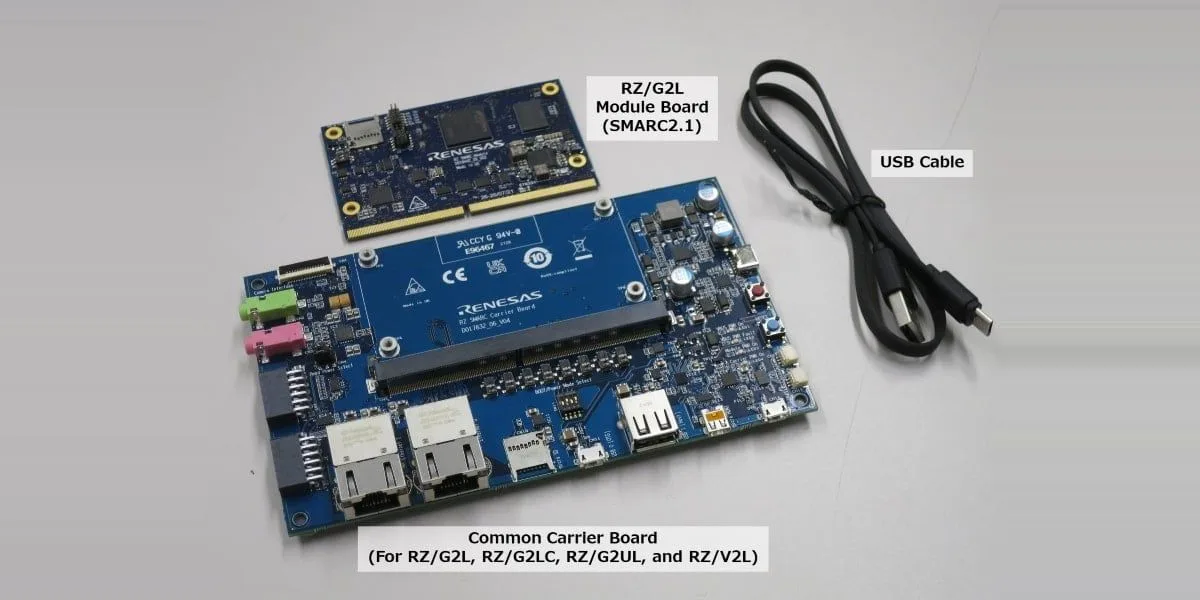

Renesas's evaluation kit for the RZ/G2L: a SMARC v2.1 module board on a common carrier that also accepts the RZ/G2LC, RZ/G2UL and RZ/V2L modules. The RZ/G Verified Linux Package builds on the Civil Infrastructure Platform kernel, which suits products that must be maintained for a decade.
- 2× Cortex-A55 @ 1.2 GHz, Cortex-M33 @ 200 MHz, Mali-G31 GPU
- 2 GB DDR4, 64 GB eMMC, 512 Mb QSPI flash
- SMARC v2.1 module on a common carrier board
- USB-C Power Delivery, 65 W charger included
Supplied as a Linux-ready kit: we deliver the board with a Linux image built for your application and can take on BSP customisation, driver development and bring-up. Contact us for scope and lead time.
Tag: FEL-RZG2L-EVK, r1, hardware, 25 Sept 2026
