Raspberry Pi Compute Module 5 Development Kit
Broadcom BCM2712 compute module on the official CM5 IO Board, for moving a Raspberry Pi prototype onto a custom carrier board. In production until at least January 2036.
Specifications
- SoC
- Broadcom BCM2712
- CPU
- 4× Arm Cortex-A76 @ 2.4 GHz
- GPU
- VideoCore VII, OpenGL ES 3.1, Vulkan 1.3
- Memory
- 2 / 4 / 8 / 16 GB LPDDR4-4267 with ECC
- Storage
- 0 / 16 / 32 / 64 GB eMMC
- Display
- 2× HDMI 2.0, 4Kp60 on both
- Camera / display
- 2× 4-lane MIPI DSI/CSI-2
- Networking
- Gigabit Ethernet PHY with IEEE 1588
- Wireless
- Optional 802.11ac Wi-Fi, Bluetooth 5.0 / BLE
- USB
- 2× USB 3.0, 1× USB 2.0
- Expansion
- PCIe Gen 2 x1, up to 30 GPIO
- Module size
- 55 × 40 × 4.7 mm

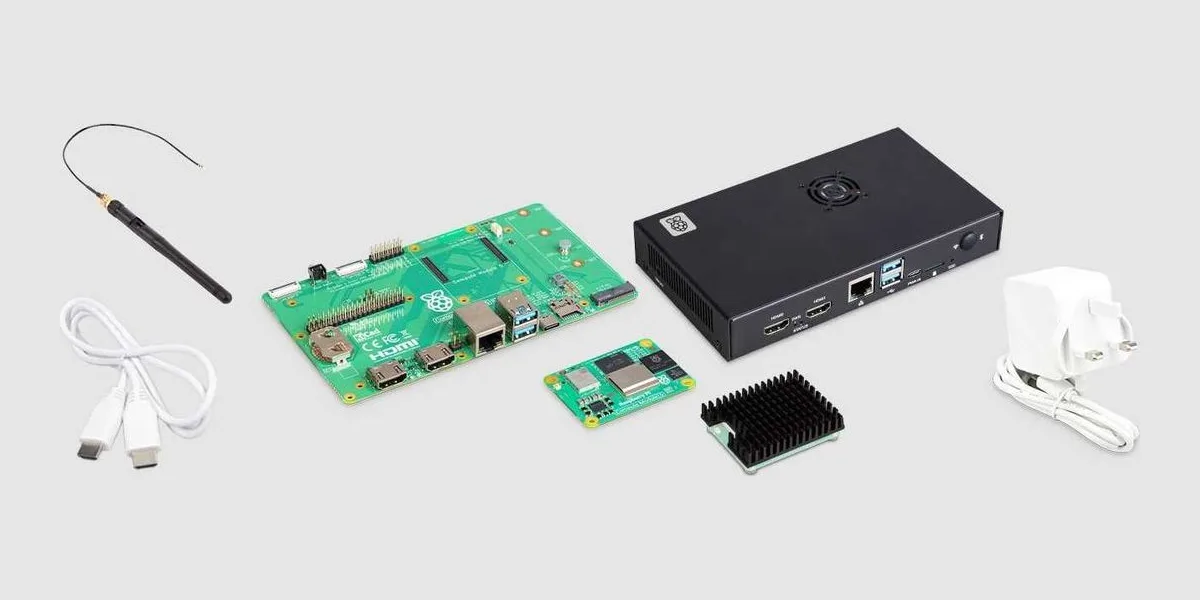

- Kit contents
- CM5, CM5 IO Board, case, cooler, antenna, power supply, cables
- Longevity
- In production until at least January 2036
- Linux support
- Raspberry Pi OS (Debian), Yocto (meta-raspberrypi)
- Manufacturer
- Raspberry Pi Ltd, United Kingdom
- Fast Solutions kit
- Linux image built for your application (Yocto or Debian-based), BSP and driver bring-up on request
Details
Compute Module 5 puts the Raspberry Pi 5 processor on a 55 × 40 mm module with onboard eMMC, so a product can ship on its own carrier board while keeping the Raspberry Pi software stack. The IO Board breaks out every interface for development.
- BCM2712, 4× Cortex-A76 @ 2.4 GHz
- 2–16 GB LPDDR4 with ECC, 0–64 GB eMMC
- PCIe Gen 2 x1, 2× USB 3.0, 2× HDMI 4Kp60
- In production until at least January 2036
Supplied as a Linux-ready kit: we deliver the board with a Linux image built for your application and can take on BSP customisation, driver development and bring-up. Contact us for scope and lead time.
