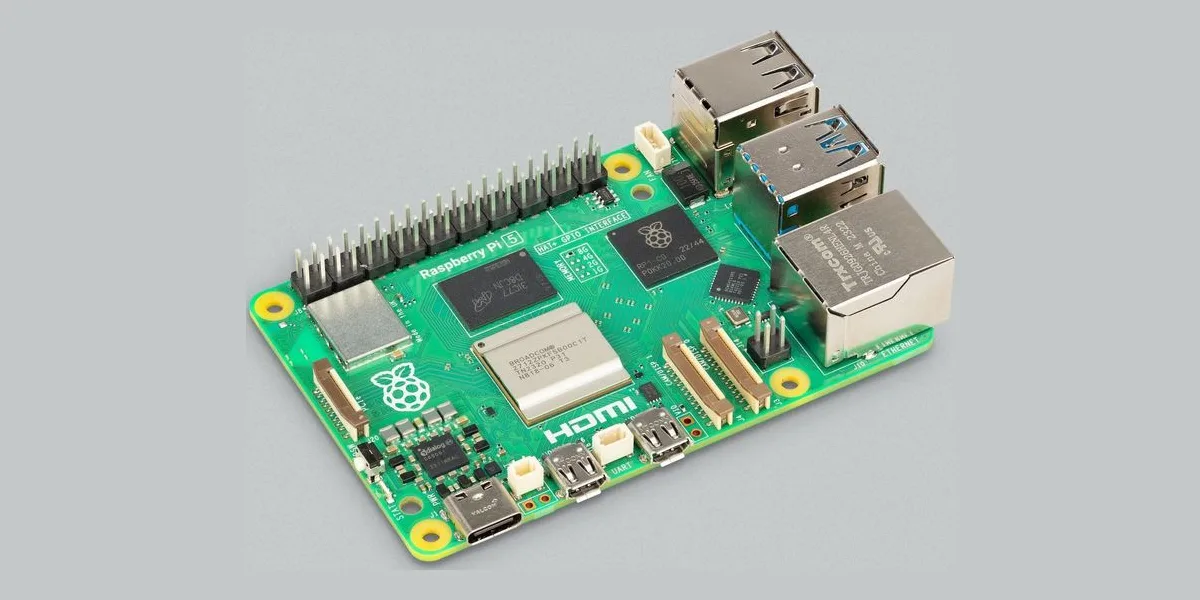

Raspberry Pi 5
Broadcom BCM2712 quad-core Cortex-A76 single-board computer with 1–16 GB RAM, PCIe 2.0 and dual 4K HDMI. Supplied as a Linux-ready kit for fast proof-of-concept builds.
Specifications
- SoC
- Broadcom BCM2712
- CPU
- 4× Arm Cortex-A76 @ 2.4 GHz
- GPU
- VideoCore VII, OpenGL ES 3.1, Vulkan 1.3
- Memory
- 1 / 2 / 4 / 8 / 16 GB LPDDR4X-4267
- Storage
- microSD (SDR104), NVMe via PCIe M.2 HAT
- Display
- 2× micro-HDMI, 4Kp60 with HDR
- Camera / display
- 2× 4-lane MIPI CSI/DSI transceivers
- Networking
- Gigabit Ethernet, PoE+ with HAT
- Wireless
- Dual-band 802.11ac Wi-Fi, Bluetooth 5.0 / BLE
- USB
- 2× USB 3.0, 2× USB 2.0
- Expansion
- 40-pin GPIO header, PCIe 2.0 x1
- Power
- 5 V / 5 A USB-C with Power Delivery
- Linux support
- Raspberry Pi OS (Debian), Yocto (meta-raspberrypi)
- Manufacturer
- Raspberry Pi Ltd, United Kingdom
- Fast Solutions kit
- Linux image built for your application (Yocto or Debian-based), BSP and driver bring-up on request
Details
The reference board for embedded Linux proof-of-concept work: a 2.4 GHz quad-core Cortex-A76, PCIe for NVMe storage or AI accelerators, and the largest accessory ecosystem of any single-board computer.
- Broadcom BCM2712, 4× Cortex-A76 @ 2.4 GHz
- 1 / 2 / 4 / 8 / 16 GB LPDDR4X
- PCIe 2.0 x1, 2× 4-lane MIPI camera/display transceivers
- Gigabit Ethernet, dual-band Wi-Fi, Bluetooth 5.0
Supplied as a Linux-ready kit: we deliver the board with a Linux image built for your application and can take on BSP customisation, driver development and bring-up. Contact us for scope and lead time.
Tag: FEL-RPI5, r1, hardware, 25 Sept 2026
