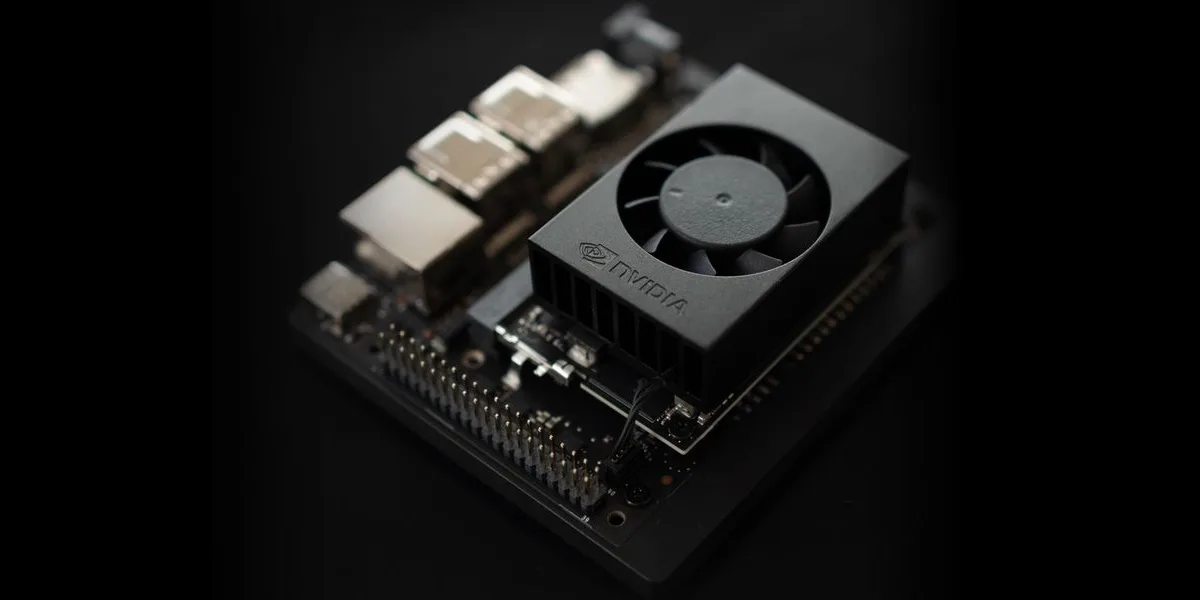

NVIDIA Jetson Orin Nano Super Developer Kit
67 TOPS edge-AI computer with an NVIDIA Ampere GPU, 6-core Cortex-A78AE CPU and 8 GB LPDDR5, running JetPack. A Linux-ready kit for vision and robotics prototypes.
Specifications
- AI performance
- 67 INT8 TOPS
- GPU
- NVIDIA Ampere, 1024 CUDA cores, 32 Tensor cores
- CPU
- 6× Arm Cortex-A78AE v8.2, 1.5 MB L2 + 4 MB L3
- Memory
- 8 GB 128-bit LPDDR5, 102 GB/s
- Storage
- microSD, NVMe (M.2 Key M)
- Camera
- 2× MIPI CSI-2 connectors
- Display
- DisplayPort
- Networking
- Gigabit Ethernet
- Wireless
- Wi-Fi module on M.2 Key E
- USB
- 4× USB 3.2 Gen 2 Type-A
- Power
- 7–25 W
- Linux support
- JetPack SDK (Jetson Linux, Ubuntu-based)
- Manufacturer
- NVIDIA, United States
- Fast Solutions kit
- Linux image built for your application (Yocto or Debian-based), BSP and driver bring-up on request
Details
NVIDIA's entry point to the Jetson Orin platform: an Ampere GPU with 1024 CUDA cores and 32 Tensor cores delivering 67 INT8 TOPS within a 7–25 W envelope, with the JetPack SDK for CUDA and TensorRT.
- 67 INT8 TOPS
- 6× Arm Cortex-A78AE CPU
- 8 GB 128-bit LPDDR5, 102 GB/s
- 7–25 W power modes
Supplied as a Linux-ready kit: we deliver the board with a Linux image built for your application and can take on BSP customisation, driver development and bring-up. Contact us for scope and lead time.
Tag: FEL-ORIN-NANO-S, r1, hardware, 25 Sept 2026
