Forlinx OK3568-C
Rockchip RK3568 quad-core Cortex-A55 industrial board with a 1 TOPS NPU, dual Gigabit Ethernet, CAN and a 10.1-inch LVDS display. Available in a -40 to 85 °C industrial grade.
Specifications
- SoC
- Rockchip RK3568, or RK3568J for industrial grade
- CPU
- 4× Arm Cortex-A55, up to 2.0 GHz (RK3568) / 1.8 GHz (RK3568J)
- AI accelerator
- NPU, 1 TOPS (INT8 / INT16 / FP16), RKNN-Toolkit
- Memory
- 1 / 2 / 4 / 8 GB DDR4
- Storage
- 8 / 16 / 32 / 64 GB eMMC
- Display
- HDMI 2.0, eDP, LVDS, RGB, MIPI DSI; 3 simultaneous outputs up to 4K
- Networking
- 2× Gigabit Ethernet
- Wireless
- Dual-band Wi-Fi, 4G / 5G modem slot
- Industrial I/O
- CAN, with EFT, ESD and surge protection
- Operating temperature
- 0 to 70 °C, or -40 to 85 °C (RK3568J)
- Kit contents
- FET3568-C module, carrier board, 10.1" LVDS display, power supply, cables
- Linux support
- Linux 5.10 / 6.1, Debian 11, Forlinx Desktop (Ubuntu), Android 11, OpenHarmony 4.1
- Manufacturer
- Forlinx Embedded Technology, China
- Fast Solutions kit
- Linux image built for your application (Yocto or Debian-based), BSP and driver bring-up on request
Details

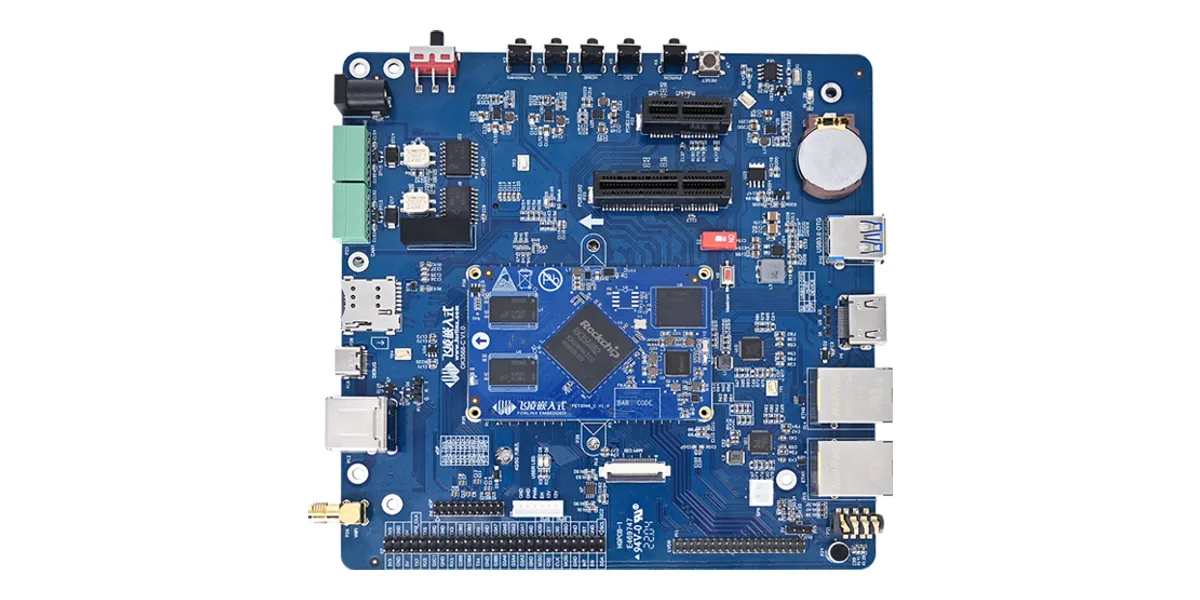

Forlinx's development kit pairs the FET3568-C system on module with a full carrier board, a 10.1-inch LVDS screen and cabling. The RK3568J variant is rated for -40 to 85 °C, and the CAN and Ethernet ports carry EFT, ESD and surge protection, making it a cost-effective base for industrial HMIs and gateways.
- RK3568 / RK3568J: 4× Cortex-A55, 1 TOPS NPU
- 1–8 GB DDR4, 8–64 GB eMMC
- HDMI 2.0, eDP, LVDS, RGB and MIPI DSI, three displays at once
- 2× Gigabit Ethernet, Wi-Fi, 4G/5G modem slot
Supplied as a Linux-ready kit: we deliver the board with a Linux image built for your application and can take on BSP customisation, driver development and bring-up. Contact us for scope and lead time.
Tag: FEL-OK3568C, r1, hardware, 25 Sept 2026
