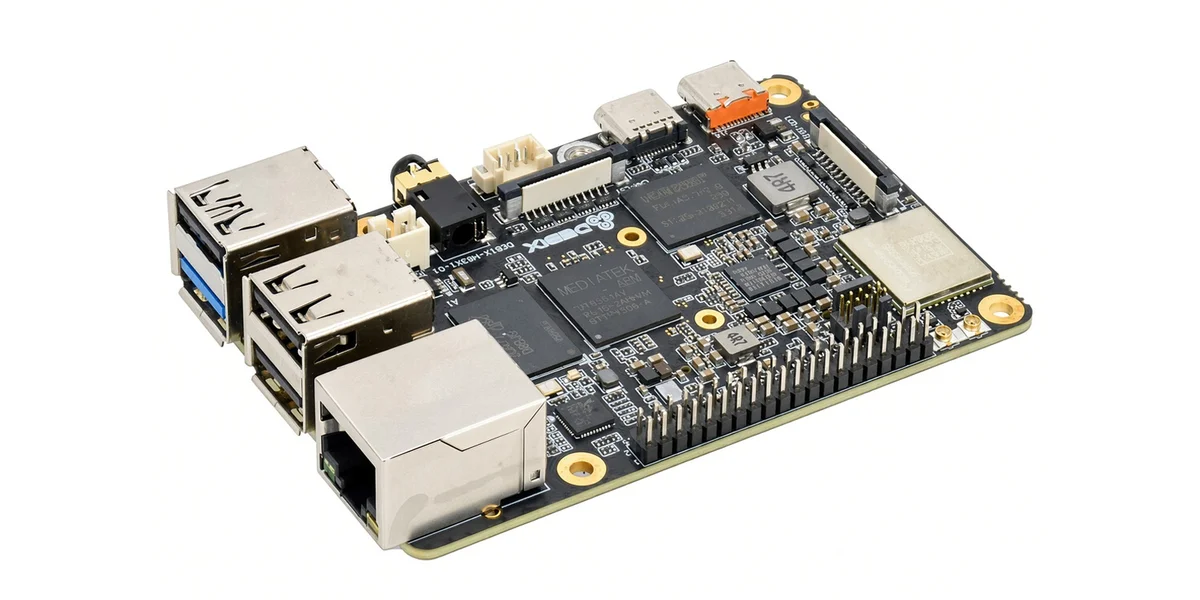

DEBIX M8391-01
MediaTek Genio 720 (MT8391) industrial single-board computer with a 9 TOPS NPU, dual-display output and PoE Gigabit Ethernet. A Linux-ready kit for edge-AI HMIs and vision gateways.
Specifications
- SoC
- MediaTek MT8391 (Genio 720)
- CPU
- 2× Arm Cortex-A78 @ 2.6 GHz (2.4 GHz industrial) + 6× Cortex-A55 @ 2.0 GHz
- GPU
- Arm Mali-G57 MC2, up to 1.1 GHz
- AI accelerator
- NPU850, 9 TOPS
- Memory
- 4 / 8 / 16 GB LPDDR4
- Storage
- 8 / 16 / 32 / 64 GB eMMC, M.2 NVMe (PCIe 2.0), microSD
- Display
- eDP 1.4 over USB-C up to 4K60, MIPI DSI up to 2.5K
- Camera
- 4-lane MIPI CSI, up to 32 MP at 30 fps
- Networking
- Gigabit Ethernet with PoE
- Wireless
- Wi-Fi 6 (2.4 / 5 GHz), Bluetooth 5.4
- USB
- 2× USB 2.0 Type-A, 1× USB 2.0/3.0 Type-A, 1× USB-C OTG
- Expansion
- 40-pin header (UART, I2C, I2S, SPI, PWM), JTAG and UART debug headers
- Security
- Arm TrustZone, secure boot, crypto engines, OTP, RNG

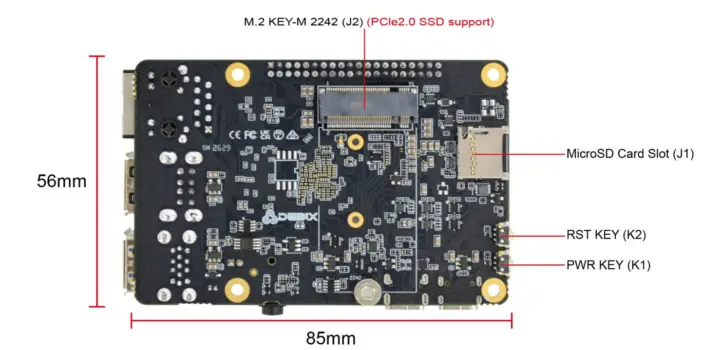

- Dimensions
- 85 × 56 mm
- Operating temperature
- 0 to 70 °C, or -40 to 85 °C (industrial)
- Power
- 5 V / 3 A
- Linux support
- Yocto Linux, Ubuntu, Android
- Manufacturer
- DEBIX (Polyhex), China
- Fast Solutions kit
- Linux image built for your application (Yocto or Debian-based), BSP and driver bring-up on request
Details
A compact 85 × 56 mm industrial board from DEBIX built on MediaTek's Genio 720: two Cortex-A78 and six Cortex-A55 cores, a 9 TOPS NPU and two independent display outputs. Industrial-grade variants are rated for -40 to 85 °C and the board runs Yocto Linux, Ubuntu or Android.
- MediaTek MT8391: 2× Cortex-A78 + 6× Cortex-A55, NPU850 with 9 TOPS
- 4 / 8 / 16 GB LPDDR4, 8–64 GB eMMC, M.2 NVMe
- 4K eDP over USB-C plus MIPI DSI, 4-lane MIPI CSI up to 32 MP
- Gigabit Ethernet with PoE, Wi-Fi 6, Bluetooth 5.4
Supplied as a Linux-ready kit: we deliver the board with a Linux image built for your application and can take on BSP customisation, driver development and bring-up. Contact us for scope and lead time.
