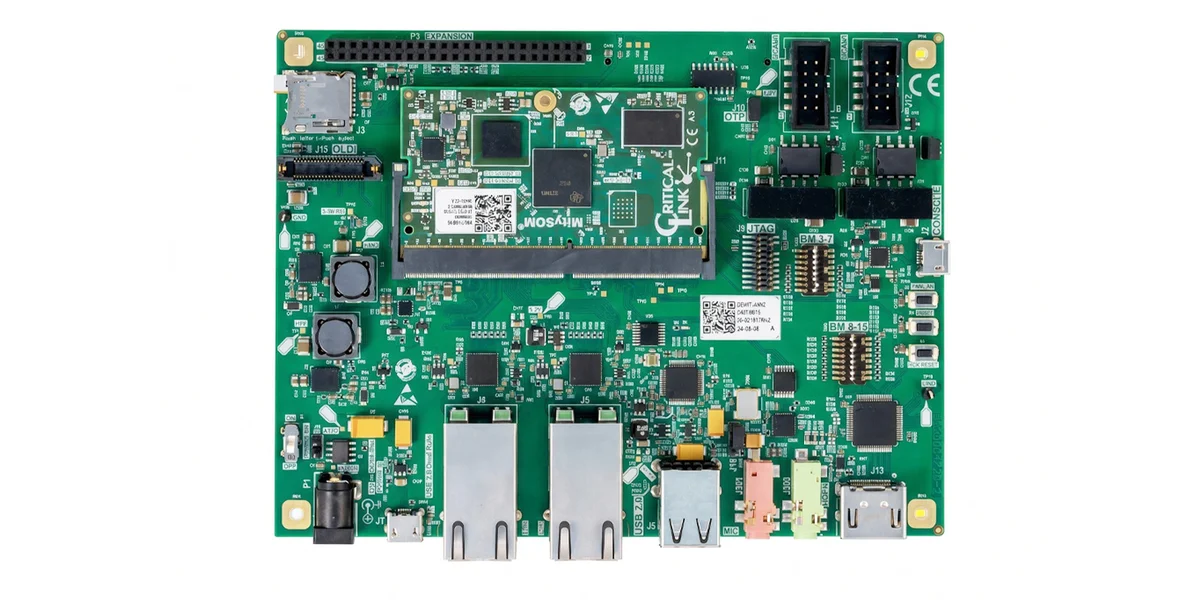

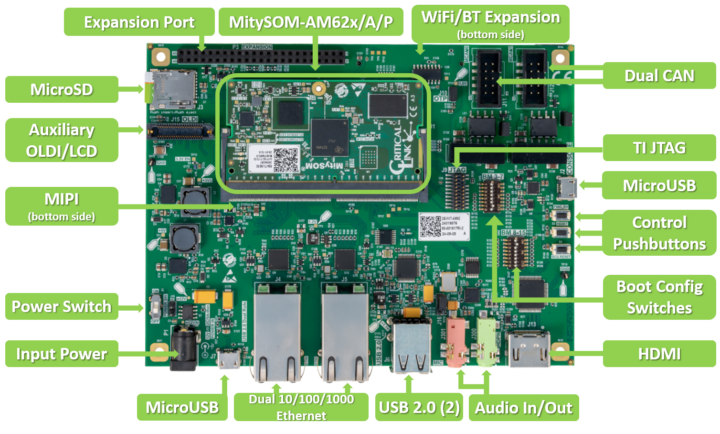

MitySOM-AM62x/A/P Development Kit
TI Sitara AM62x, AM62A or AM62P industrial SO-DIMM system on module with a baseboard, for edge AI and industrial automation. Quad Cortex-A53, dual Gigabit Ethernet and three CAN-FD.
Specifications
- SoC
- TI Sitara AM62x, AM62A or AM62P (by variant)
- CPU
- 4× Arm Cortex-A53 @ 1.4 GHz; Cortex-M4F + PRU (AM62x), Cortex-R5F (AM62A), 2× Cortex-R5F (AM62P)
- GPU
- AM62x: 3D GPU, OpenGL ES, Vulkan; AM62P: IMG BXS-4-64; AM62A: none
- AI accelerator
- AM62A: C7x DSP with matrix multiply, 2 TOPS
- Memory
- AM62x: up to 4 GB DDR4; AM62A: up to 16 GB LPDDR4; AM62P: up to 8 GB LPDDR4
- Storage
- eMMC up to 128 GB (256 GB on AM62P), SPI NOR up to 256 MB
- Display
- AM62x: dual 1080p (RGB, 2× OLDI); AM62A: single 2048 × 1080; AM62P: up to 3840 × 1080 (RGB, OLDI, MIPI DSI)
- Camera
- 4-lane MIPI CSI-2
- Networking
- 2× Gigabit Ethernet MAC
- Industrial I/O
- 3× CAN-FD, up to 7× UART, 3× SPI, 3–4× I2C
- USB
- 2× USB 2.0 High-Speed
- Security
- Secure boot, AES / SHA / DRBG / PKA accelerators, HS-FS
- Form factor
- 260-pin SO-DIMM, 69.6 × 38.1 mm
- Power
- Single 3.3 V DC supply (3.2–3.5 V)
- Operating temperature
- 0 to 70 °C, or -40 to 85 °C (industrial)
- Kit contents
- SoM, baseboard, power supply, cables, USB software drive
- Linux support
- Yocto (TI Processor SDK); Edge AI stack (AM62A); Android (AM62P)
- Manufacturer
- Critical Link, United States
- Fast Solutions kit
- Linux image built for your application (Yocto or Debian-based), BSP and driver bring-up on request
Details
Critical Link's 69.6 × 38.1 mm 260-pin SO-DIMM module in three TI Sitara flavours: AM62x for general-purpose control and dual displays, AM62A with a 2 TOPS C7x/MMA accelerator and ISP for vision, and AM62P with a GPU and hardware video codec for multimedia. All are available in an industrial -40 to 85 °C grade and run from a single 3.3 V rail.
TI Sitara AM62x / AM62A / AM62P: 4× Cortex-A53 @ 1.4 GHz plus Cortex-M4F or R5F real-time cores
AM62A: 2 TOPS AI accelerator; AM62P: IMG BXS-4-64 GPU with video encode/decode
Up to 16 GB LPDDR4 (AM62A), up to 256 GB eMMC
2× Gigabit Ethernet, 3× CAN-FD, 4-lane MIPI CSI-2, secure boot
Supplied as a Linux-ready kit: we deliver the board with a Linux image built for your application and can take on BSP customisation, driver development and bring-up. Contact us for scope and lead time.
Tag: FEL-MITYSOM-AM62, v2, hardware, 7 Oct 2026
