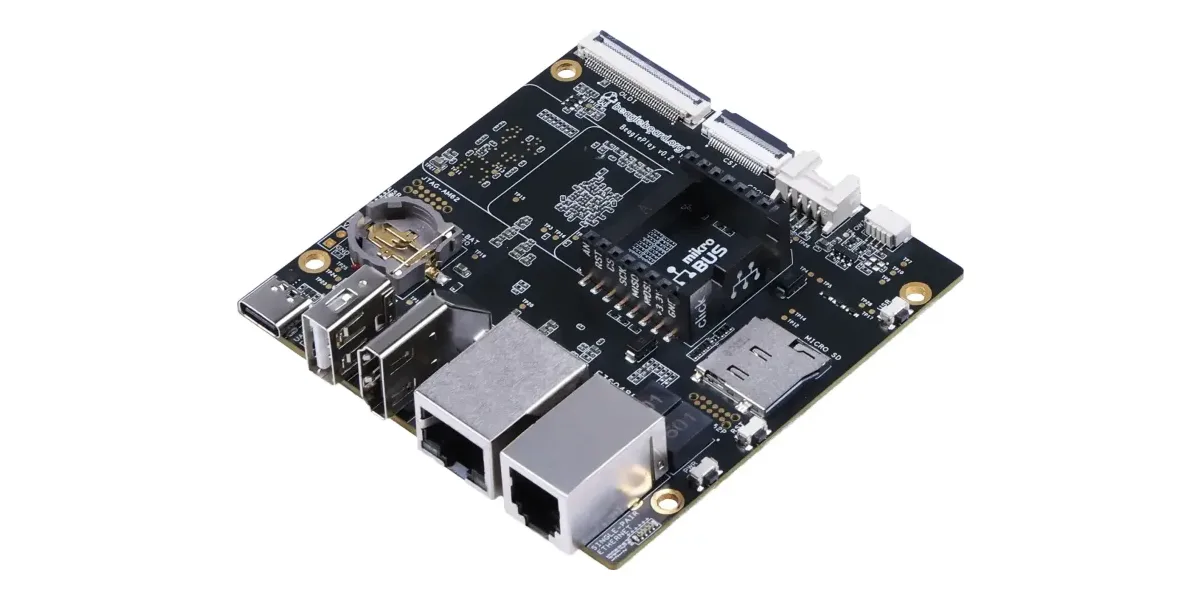

BeaglePlay
TI Sitara AM625 quad-core Cortex-A53 board with single-pair Ethernet, sub-GHz radio and mikroBUS, Grove and QWIIC expansion. A Linux-ready kit for industrial IoT gateways.
Specifications
- SoC
- TI Sitara AM6254
- CPU
- 4× Arm Cortex-A53 @ 1.4 GHz, Cortex-M4F @ 400 MHz, PRU subsystem @ 333 MHz
- GPU
- PowerVR Rogue AXE-1-16M, OpenGL ES 3.1, Vulkan 1.2
- Memory
- 2 GB DDR4
- Storage
- 16 GB eMMC, microSD
- Display
- HDMI 1080p, OLDI connector for touch panels
- Camera
- FPC camera connector
- Networking
- Gigabit Ethernet, single-pair Ethernet with power over data line
- Wireless
- 2.4 / 5 GHz Wi-Fi, BLE, Zigbee, sub-GHz (Wi-SUN, Amazon Sidewalk)
- Expansion
- mikroBUS, Grove, QWIIC
- Dimensions
- 80 × 80 mm
- Linux support
- Debian (BeagleBoard.org images), Yocto (meta-ti)
- Manufacturer
- BeagleBoard.org Foundation, United States
- Fast Solutions kit
- Linux image built for your application (Yocto or Debian-based), BSP and driver bring-up on request
Details
An open-hardware board built around TI's Sitara AM625, with the connectivity an IoT gateway needs already on board: Wi-Fi, BLE and Zigbee, a sub-GHz radio, Gigabit and single-pair Ethernet, and three sensor-expansion ecosystems.
- TI AM6254: 4× Cortex-A53 @ 1.4 GHz, Cortex-M4F, PRU subsystem
- 2 GB DDR4, 16 GB eMMC
- Single-pair Ethernet with power over data line
- mikroBUS, Grove and QWIIC connectors
Supplied as a Linux-ready kit: we deliver the board with a Linux image built for your application and can take on BSP customisation, driver development and bring-up. Contact us for scope and lead time.
