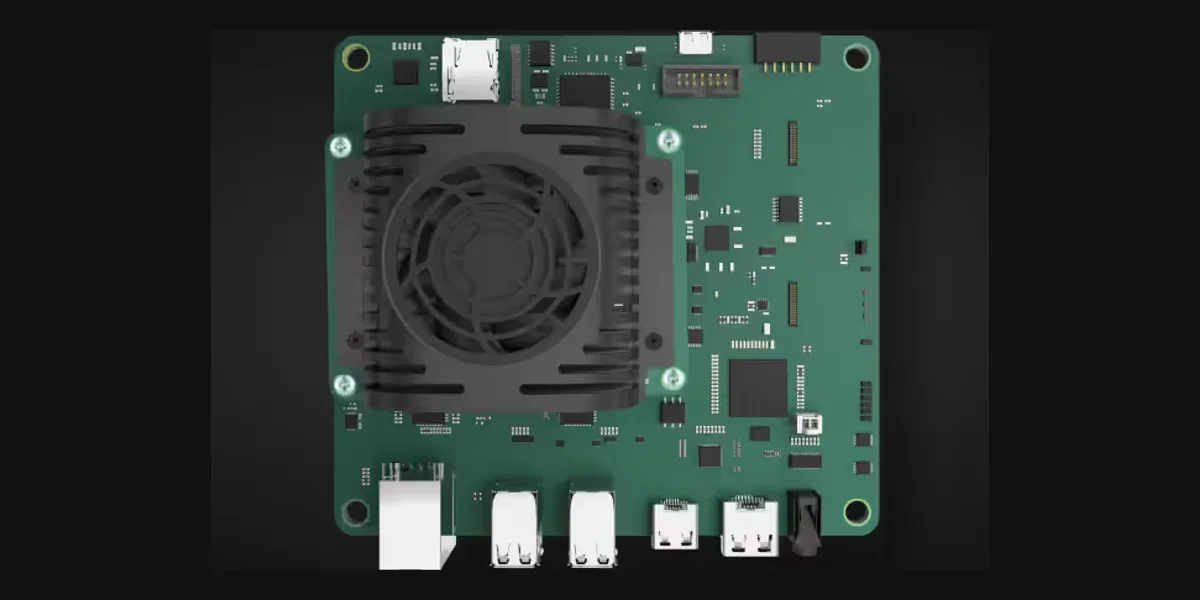

AMD Kria KV260 Vision AI Starter Kit
AMD Zynq UltraScale+ system on module with quad Cortex-A53 and FPGA fabric, 4 GB DDR4 and three MIPI camera inputs. A Linux-ready kit for accelerated vision pipelines.
Specifications
- SOM
- AMD Kria K26 (Zynq UltraScale+ MPSoC)
- CPU
- 4× Arm Cortex-A53, 2× Cortex-R5F
- Programmable logic
- 256K system logic cells, 1,248 DSP slices
- Memory
- 4 GB DDR4
- Storage
- 16 GB eMMC, 512 Mb QSPI flash, microSD
- Camera
- 3× MIPI sensor interfaces, USB cameras, onsemi AP1302 ISP
- Display
- HDMI 1.4, DisplayPort 1.2a
- Networking
- Gigabit Ethernet
- USB
- USB 3.0 / 2.0
- Linux support
- Ubuntu, PetaLinux (Yocto-based)
- Manufacturer
- AMD, United States
- Fast Solutions kit
- Linux image built for your application (Yocto or Debian-based), BSP and driver bring-up on request
Details
AMD's starter kit for the Kria K26 system on module, which combines Arm application cores with programmable logic. Vision pipelines that outgrow a CPU or NPU move into FPGA fabric while Linux stays on the Arm side, and the same K26 module goes into production hardware.
- Kria K26 SOM: Zynq UltraScale+ MPSoC
- 4× Cortex-A53, 2× Cortex-R5F
- 256K system logic cells, 1,248 DSP slices
- 3 MIPI sensor interfaces, onsemi AP1302 ISP
Supplied as a Linux-ready kit: we deliver the board with a Linux image built for your application and can take on BSP customisation, driver development and bring-up. Contact us for scope and lead time.
Tag: FEL-KV260, r1, hardware, 25 Sept 2026
